零、安装环境说明

sonarqube版本：9.99

操作系统：centos7.x cpu：4核内存：4G 硬盘：50G

jdk：17

数据库：postgresql15

一、部署postgresql-15（创建用户部分有问题2）

地址：https://www.postgresql.org/download/linux/redhat/

安装

下载rpm包

[root@localhost ~]# sudo yum install -y https://download.postgresql.org/pub/repos/yum/reporpms/EL-7-x86_64/pgdg-redhat-repo-latest.noarch.rpm

安装postgresql15

[root@localhost ~]# sudo yum install -y postgresql15-server

初始化数据库

[root@sonarqube ~]# /usr/pgsql-15/bin/postgresql-15-setup initdb

启动并设置开机自启

[root@sonarqube ~]# systemctl start postgresql-15
[root@sonarqube ~]# systemctl enable postgresql-15

登录postgresql设置密码

#切换用户
[root@sonarqube ~]# su - postgres
-bash-4.2$ psql
psql (15.12)
Type "help" for help.
#设置postgres用户密码为postgres
postgres=# alter user postgres with password 'postgres';
ALTER ROLE
postgres=# exit
-bash-4.2$ exit

修改配置文件pg_hba.conf和postgresql.conf

切换postgres用户执行修改pg_hba.conf文件

[root@sonarqube ~]# su - postgres
-bash-4.2$ vi /var/lib/pgsql/15/data/pg_hba.conf
# "local" is for Unix domain socket connections only
local   all             all                                     md5
# IPv4 local connections:
host    all             all             127.0.0.1/32            md5
# IPv6 local connections:
host    all             all             ::1/128                 md5
host    all             all             0.0.0.0/0               md5
# Allow replication connections from localhost, by a user with the
# replication privilege.
#local   replication     all                                     peer
#host    replication     all             127.0.0.1/32            scram-sha-256
#host    replication     all             ::1/128                 scram-sha-256

修改postgres.conf配置文件

-bash-4.2$ vi /var/lib/pgsql/15/data/postgresql.conf
listen_addresses = '*'          # what IP address(es) to listen on;

退出postgres用户，重启postgresql服务

-bash-4.2$ exit logout
[root@sonarqube ~]# systemctl restart postgresql-15

到这里数据库就可以远程登录了

创建sonarqube程序连接专用数据库

#切换用户
[root@sonarqube ~]# su - postgres
Last login: Fri Mar 21 15:18:35 CST 2025 on pts/1
-bash-4.2$ psql
Password for user postgres:
psql (15.12)
Type "help" for help.
#创建sonar用户密码设置为sonar
postgres=# create user sonar with password 'sonar';
CREATE ROLE
#创建库名为sonar的库
postgres=# create database sonar owner sonar;
CREATE DATABASE
#用户sonar拥有对sonar库操作的权限
postgres=# grant all on database sonar to sonar;
GRANT
postgres=# create schema my_schema;
CREATE SCHEMA
postgres=# exit
-bash-4.2$ exit
logout

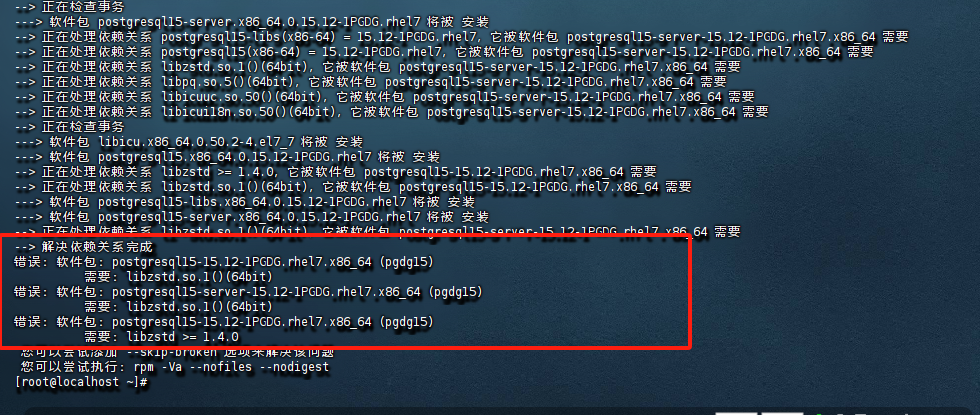

报错，提示libzstd版本不能低于1.4.0

解决办法：

如果安装提示没有包可以安装下epel源再尝试安装libzstd程序

[root@sonarqube ~]# yum -y install epel-release
[root@localhost ]# yum install libzstd

二、部署mysql5.7（废弃不能使用）

下载压缩包：

mysql5.7.44版本压缩包地址：https://downloads.mysql.com/archives/get/p/23/file/mysql-5.7.44-el7-x86_64.tar.gz

1、创建目录下载，解压

[root@localhost ~]# mkdir /data

[root@localhost ~]# cd /data/

[root@localhost data]# wget https://downloads.mysql.com/archives/get/p/23/file/mysql-5.7.44-el7-x86_64.tar.gz

[root@localhost data]# tar -zxvf mysql-5.7.44-el7-x86_64.tar.gz

[root@localhost data]# mv mysql-5.7.44-el7-x86_64 mysql-5.7.44

创建数据目录

[root@localhost data]# mkdir mysql_data

2、创建mysql5.7用户，授权mysql数据目录

[root@localhost data]# useradd -s /sbin/nologin -M mysql

[root@localhost data]# chown -R mysql:mysql /data/mysql-5.7.44

[root@localhost data]# chown -R mysql:mysql /data/mysql_data/

3、设置环境变量

[root@localhost ~]# echo 'export PATH=$PATH:/data/mysql-5.7.44/bin' >> /etc/profile
[root@localhost ~]# source /etc/profile
[root@localhost ~]# mysql -V

4、初始化数据库

[root@localhost data]# ./mysql-5.7.44/bin/mysqld --initialize-insecure --user=mysql --basedir=/data/mysql-5.7.44 --datadir=/data/mysql_data/

看到结尾提示，默认密码是空的

5、创建自定义配置文件

[root@localhost data]# cat > /etc/my.cnf << 'EOF'
[mysqld]
user=mysql
basedir=/data/mysql-5.7.44
datadir=/data/mysql_data
socket=/tmp/mysql.sock
[mysql]
socket=/tmp/mysql.sock
EOF

6、设置mysql启动脚本

[root@localhost support-files]# cp /data/mysql-5.7.44/support-files/mysql.server /etc/init.d/mysqld
[root@localhost support-files]# chkconfig --add mysqld

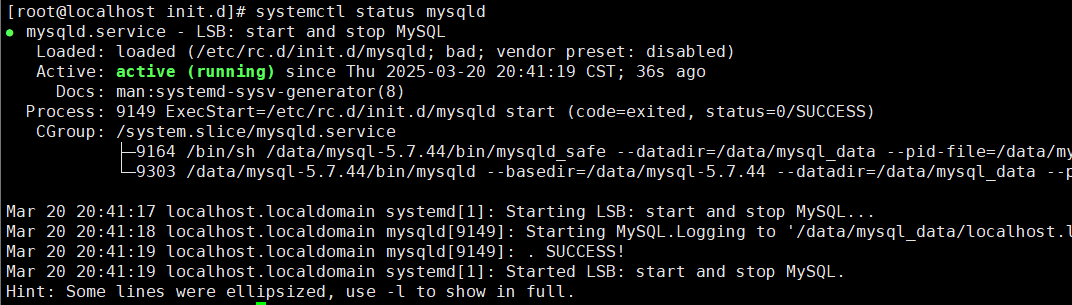

[root@localhost init.d]# systemctl start mysqld

查看服务端口

[root@localhost ~]# netstat -antup |grep 3306
tcp6 0 0 :::3306 :::* LISTEN 9303/mysqld

7、修改密码

[root@localhost ~]# mysqladmin password qazwsx

8、测试登录

[root@localhost ~]# mysql -uroot -p'qazwsx' -e 'select version();'

mysql: [Warning] Using a password on the command line interface can be insecure.

+-----------+

| version() |

+-----------+

| 5.7.44 |

+-----------+

二、安装sonarqube9.9.9LTA

优化系统参数

vm.max_map_count

大于或等于 524288

fs.file-max

大于或等于 131072

运行 SonarQube 的用户可以打开至少 131072 个文件描述符
运行SonarQube的用户可以打开至少8192个线程

[root@sonarqube ~]# sysctl vm.max_map_count
vm.max_map_count = 65530
[root@sonarqube ~]# sysctl fs.file-max
fs.file-max = 365389
#修改vm.max_map_count的值
[root@sonarqube ~]# vi /etc/security/limits.conf
sonarqube   -   nofile   131072
sonarqube   -   nproc    8192

[root@sonarqube ~]# vi /etc/sysctl.conf
vm.max_map_count=655350
[root@sonarqube ~]# sysctl -p
vm.max_map_count = 655350
[root@sonarqube ~]# sysctl vm.max_map_count
vm.max_map_count = 655350

安装jdk

下载jdk17 https://www.oracle.com/java/technologies/downloads/?er=221886

[root@sonarqube ~]# rpm -ivh jdk-17.0.14_linux-x64_bin.rpm

创建sonarqube用户，用于启动sonarqube服务

sonarqube不能基于unix使用root用户登录，创建一个专用账户

[root@sonarqube ~]# useradd sonarqube

安装sonarqube服务

#下载包
[root@sonarqube ~]# wget https://binaries.sonarsource.com/Distribution/sonarqube/sonarqube-9.9.8.100196.zip
#把包移动到/opt目录下
[root@sonarqube ~]# mv sonarqube-9.9.8.100196.zip /home/sonarqube/
#给包设置sonarqube权限
[root@sonarqube ~]# cd /home/sonarqube/
[root@sonarqube sonarqube]# chown -R sonarqube:sonarqube sonarqube-9.9.8.100196.zip
#安装zip解压工具
[root@sonarqube opt]# yum -y install unzip
#切换sonarqube用户操作
[root@sonarqube opt]# su - sonarqube
#解压
-bash-4.2$ unzip sonarqube-9.9.8.100196.zip
#重命名
-bash-4.2$ mv sonarqube-9.9.8.100196 sonarqube-9.9.8
#编辑sonarqube数据库连接信息
-bash-4.2$ cp sonarqube-9.9.8/conf/sonar.properties sonarqube-9.9.8/conf/sonar.properties.back
-bash-4.2$ cat > sonarqube-9.9.8/conf/sonar.properties << 'EOF'
> sonar.jdbc.username=sonar
> sonar.jdbc.password=sonar
> sonar.jdbc.url=jdbc:postgresql://127.0.0.1/sonar
> EOF

添加系统服务

退出sonarqube用户使用root用户操作

[root@sonarqube ~]# vi /etc/systemd/system/sonarqube.service
[Unit]
Description=SonarQube service
After=syslog.target network.target

[Service]
Type=simple
User=sonarqube
Group=sonarqube
PermissionsStartOnly=trueExecStart=/bin/nohup /usr/bin/java -Xms32m -Xmx32m -Djava.net.preferIPv4Stack=true -jar /home/sonarqube/sonarqube-9.9.8/lib/sonar-application-9.9.8.100196.jar
StandardOutput=journal
LimitNOFILE=131072
LimitNPROC=8192
TimeoutStartSec=5
Restart=always
SuccessExitStatus=143

[Install]
WantedBy=multi-user.target

启动sonarqube服务

[root@sonarqube ~]# systemctl enable sonarqube.service
Created symlink from /etc/systemd/system/multi-user.target.wants/sonarqube.service to /etc/systemd/system/sonarqube.service.
[root@sonarqube ~]# systemctl start sonarqube.service
#查看状态
[root@sonarqube ~]# systemctl status sonarqube.service
● sonarqube.service - SonarQube service
   Loaded: loaded (/etc/systemd/system/sonarqube.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2025-03-21 16:47:06 CST; 26s ago
 Main PID: 10392 (java)
   CGroup: /system.slice/sonarqube.service
           ├─10392 /usr/bin/java -Xms32m -Xmx32m -Djava.net.preferIPv4Stack=true -jar /home/sonarqube/sonarqube-9.9.8/lib/sonar-application-9.9.8.100196.jar
           ├─10415 /usr/lib/jvm/jdk-17.0.14-oracle-x64/bin/java -XX:+UseG1GC -Djava.io.tmpdir=/home/sonarqube/sonarqube-9.9.8/temp -XX:ErrorFile=/home/sonarqube/sonarqube-9.9.8/logs/es_h...
           ├─10519 /usr/lib/jvm/jdk-17.0.14-oracle-x64/bin/java -Djava.awt.headless=true -Dfile.encoding=UTF-8 -Djava.io.tmpdir=/home/sonarqube/sonarqube-9.9.8/temp -XX:-OmitStackTraceIn...
           └─10665 /usr/lib/jvm/jdk-17.0.14-oracle-x64/bin/java -Djava.awt.headless=true -Dfile.encoding=UTF-8 -Djava.io.tmpdir=/home/sonarqube/sonarqube-9.9.8/temp -XX:-OmitStackTraceIn...

Mar 21 16:47:22 sonarqube nohup[10392]: 2025.03.21 16:47:22 INFO  app[][o.s.a.ProcessLauncherImpl] Launch process[COMPUTE_ENGINE] from [/home/sonarqube/sonarqube-9.9.8]: /usr...OmitStackTra
Mar 21 16:47:22 sonarqube nohup[10392]: 2025.03.21 16:47:22 WARN  app[][startup] #############################################################################################...############
Mar 21 16:47:22 sonarqube nohup[10392]: 2025.03.21 16:47:22 WARN  app[][startup] Default Administrator credentials are still being used. Make sure to change the password or d...the account.
Mar 21 16:47:22 sonarqube nohup[10392]: 2025.03.21 16:47:22 WARN  app[][startup] #############################################################################################...############
Mar 21 16:47:22 sonarqube nohup[10392]: WARNING: A terminally deprecated method in java.lang.System has been called
Mar 21 16:47:22 sonarqube nohup[10392]: WARNING: System::setSecurityManager has been called by org.sonar.process.PluginSecurityManager (file:/home/sonarqube/sonarqube-9.9.8/l....100196.jar)
Mar 21 16:47:22 sonarqube nohup[10392]: WARNING: Please consider reporting this to the maintainers of org.sonar.process.PluginSecurityManager
Mar 21 16:47:22 sonarqube nohup[10392]: WARNING: System::setSecurityManager will be removed in a future release
Mar 21 16:47:24 sonarqube nohup[10392]: 2025.03.21 16:47:24 INFO  app[][o.s.a.SchedulerImpl] Process[ce] is up
Mar 21 16:47:24 sonarqube nohup[10392]: 2025.03.21 16:47:24 INFO  app[][o.s.a.SchedulerImpl] SonarQube is operational

#查看端口号
[root@sonarqube ~]# netstat -antup |grep java
tcp6       0      0 :::9000                 :::*                    LISTEN      10519/java
tcp6       0      0 127.0.0.1:9001          :::*                    LISTEN      10415/java
tcp6       0      0 127.0.0.1:42738         :::*                    LISTEN      10415/java
tcp6       0      0 127.0.0.1:35299         :::*                    LISTEN      10665/java
tcp6       0      0 127.0.0.1:40564         127.0.0.1:5432          ESTABLISHED 10519/java
tcp6       0      0 127.0.0.1:40556         127.0.0.1:5432          ESTABLISHED 10519/java
tcp6       0      0 127.0.0.1:40566         127.0.0.1:5432          ESTABLISHED 10519/java
tcp6       0      0 127.0.0.1:40562         127.0.0.1:5432          ESTABLISHED 10519/java
tcp6       0      0 127.0.0.1:40570         127.0.0.1:5432          ESTABLISHED 10519/java
tcp6       0      0 127.0.0.1:40568         127.0.0.1:5432          ESTABLISHED 10519/java
tcp6       0      0 127.0.0.1:40590         127.0.0.1:5432          ESTABLISHED 10665/java
tcp6       0      0 127.0.0.1:40586         127.0.0.1:5432          ESTABLISHED 10665/java
tcp6       0      0 127.0.0.1:40592         127.0.0.1:5432          ESTABLISHED 10665/java
tcp6       0      0 127.0.0.1:40572         127.0.0.1:5432          ESTABLISHED 10519/java
tcp6       0      0 127.0.0.1:40554         127.0.0.1:5432          ESTABLISHED 10519/java
tcp6       0      0 127.0.0.1:40580         127.0.0.1:5432          ESTABLISHED 10665/java
tcp6       0      0 127.0.0.1:40594         127.0.0.1:5432          ESTABLISHED 10665/java
tcp6       0      0 127.0.0.1:40578         127.0.0.1:5432          ESTABLISHED 10665/java
tcp6       0      0 127.0.0.1:40560         127.0.0.1:5432          ESTABLISHED 10519/java
tcp6       0      0 127.0.0.1:42150         127.0.0.1:9001          ESTABLISHED 10519/java
tcp6       0      0 127.0.0.1:40588         127.0.0.1:5432          ESTABLISHED 10665/java
tcp6       0      0 127.0.0.1:40576         127.0.0.1:5432          ESTABLISHED 10665/java
tcp6       0      0 127.0.0.1:40584         127.0.0.1:5432          ESTABLISHED 10665/java
tcp6       0      0 127.0.0.1:9001          127.0.0.1:42150         ESTABLISHED 10415/java
tcp6       0      0 127.0.0.1:40558         127.0.0.1:5432          ESTABLISHED 10519/java
tcp6       0      0 127.0.0.1:40582         127.0.0.1:5432          ESTABLISHED 10665/java

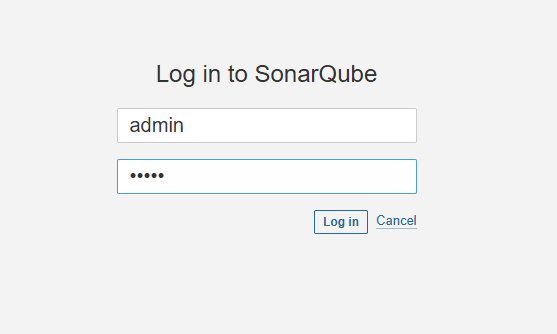

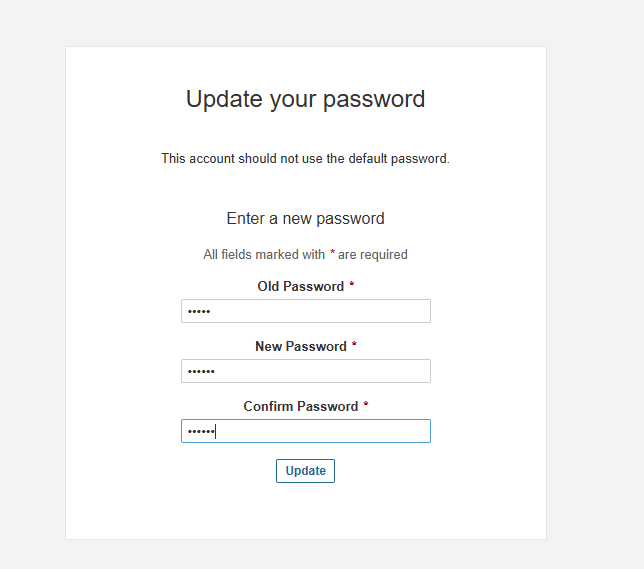

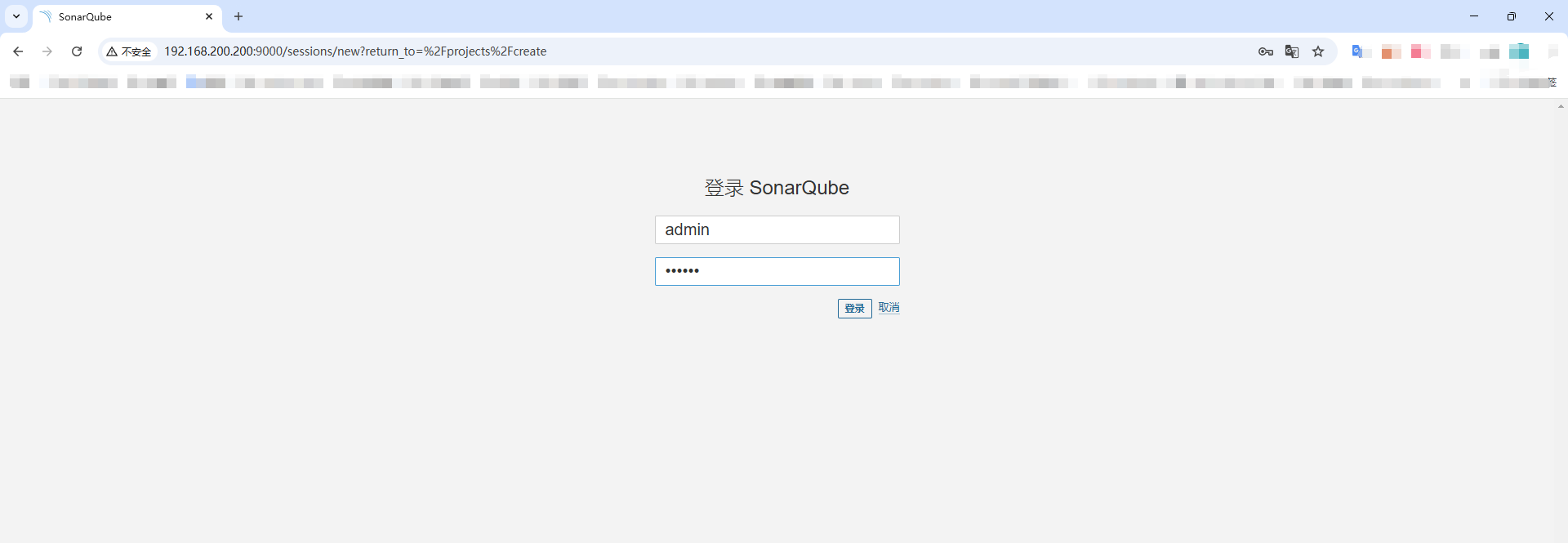

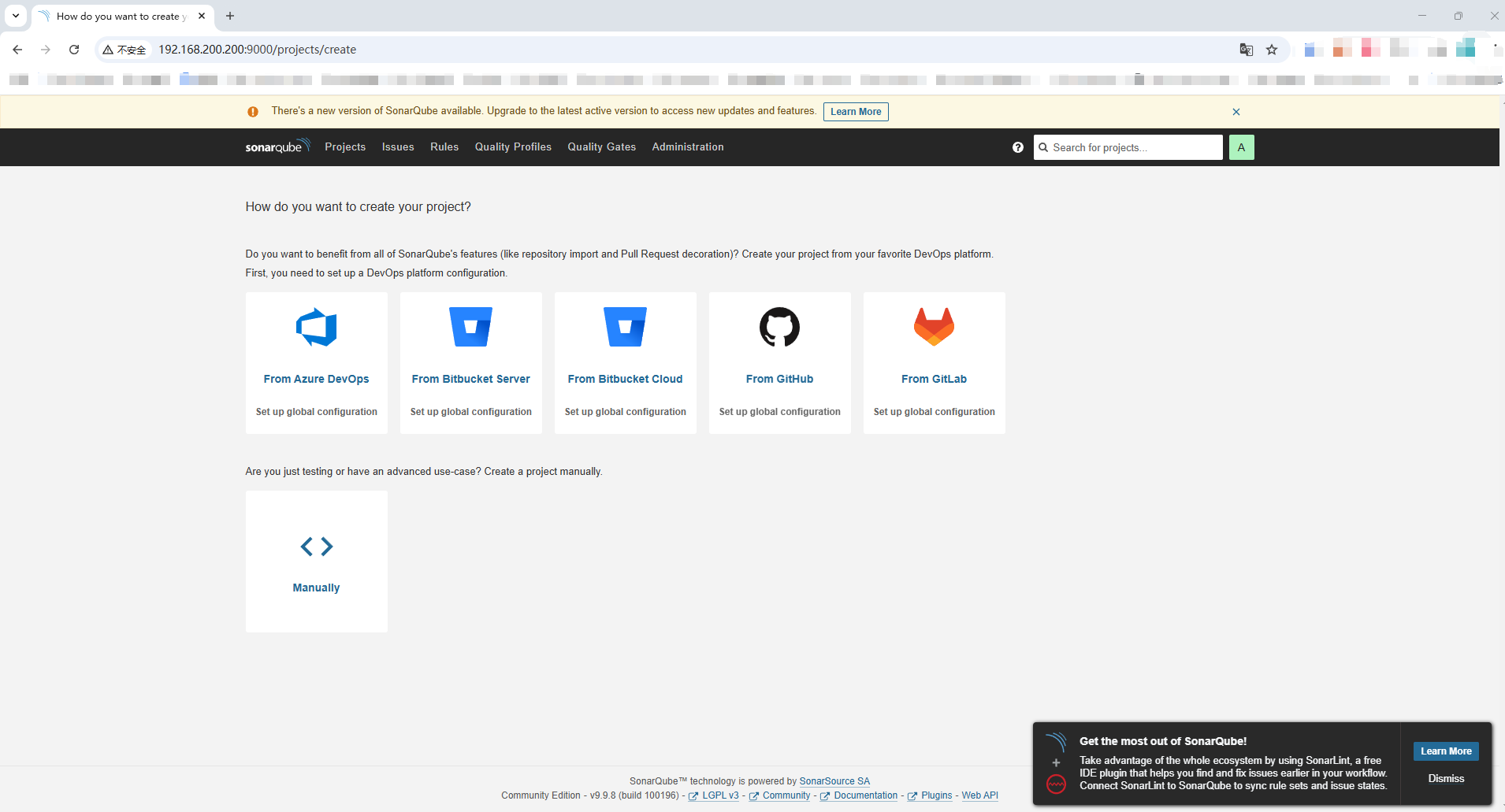

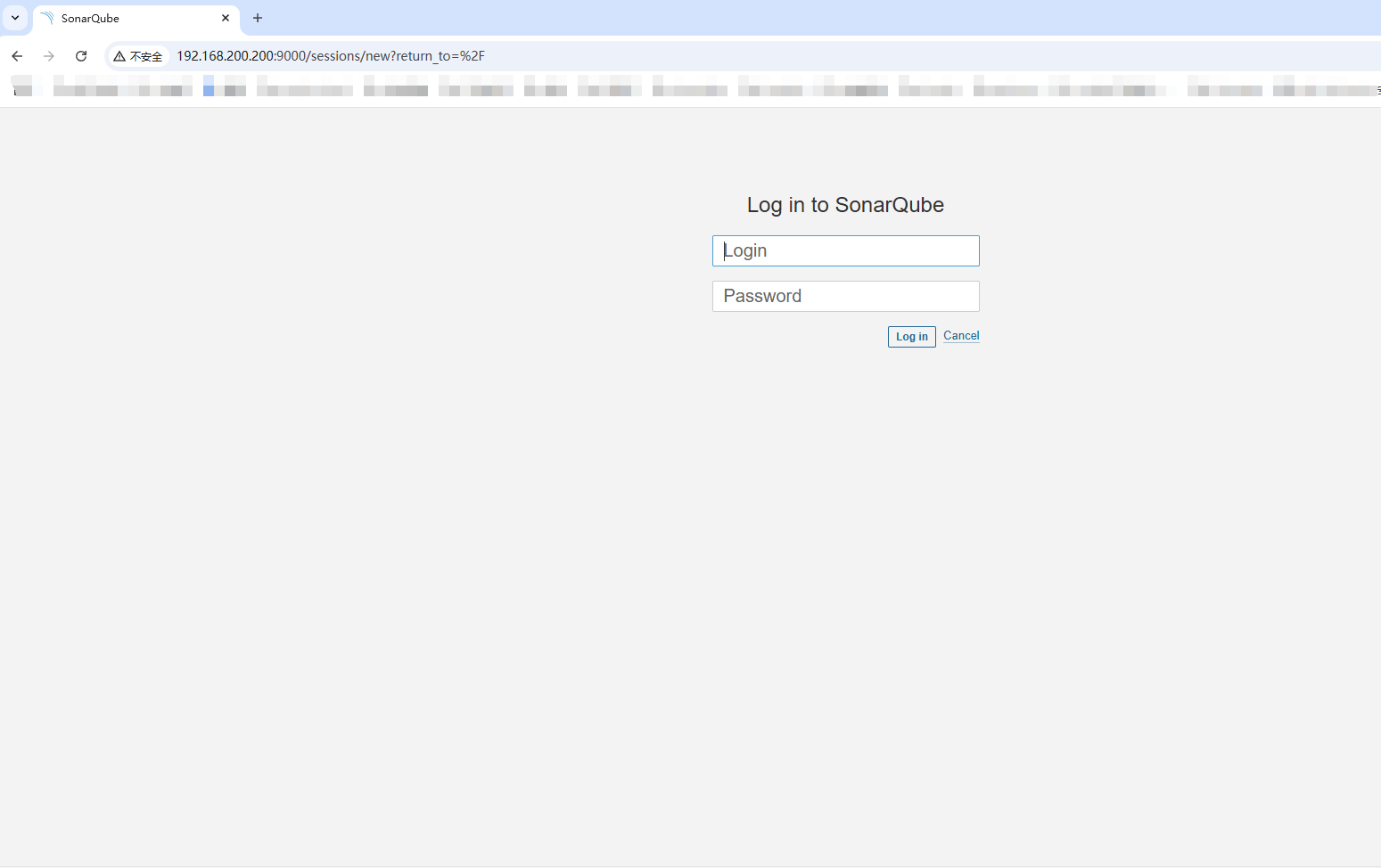

登录sonarqube

登录地址http://服务器ip地址:9000，初始账号密码都是admin

安装中文插件

https://github.com/xuhuisheng/sonar-l10n-zh

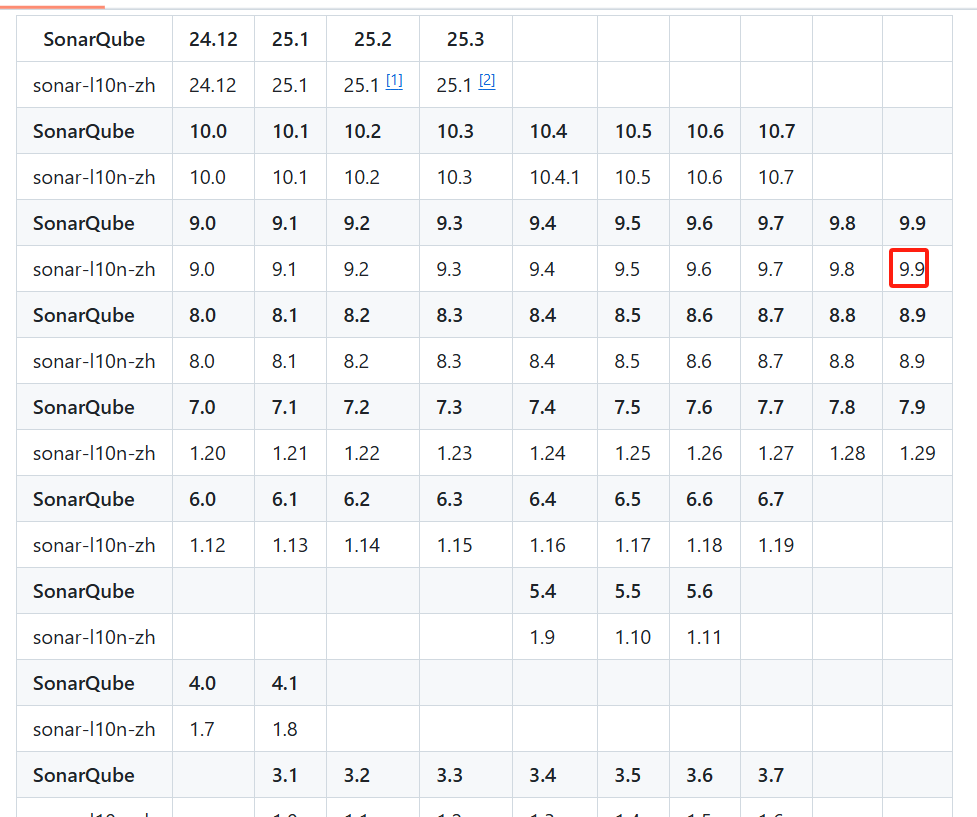

查看sonarqube对应汉化包版本

找到对应版本汉化包下载地址：https://github.com/xuhuisheng/sonar-l10n-zh/releases/download/sonar-l10n-zh-plugin-9.9/sonar-l10n-zh-plugin-9.9.jar

#下载到服务器上
[root@sonarqube ~]# wget https://github.com/xuhuisheng/sonar-l10n-zh/releases/download/sonar-l10n-zh-plugin-9.9/sonar-l10n-zh-plugin-9.9.jar
#移动到sonarqube插件目录中
[root@sonarqube ~]# mv sonar-l10n-zh-plugin-9.9.jar /home/sonarqube/sonarqube-9.9.8/extensions/downloads/
#设置中文插件权限
[root@sonarqube ~]# chown -R sonarqube:sonarqube /home/sonarqube/sonarqube-9.9.8/extensions/downloads/sonar-l10n-zh-plugin-9.9.jar
#重启sonarqube服务
[root@sonarqube ~]# systemctl restart sonarqube

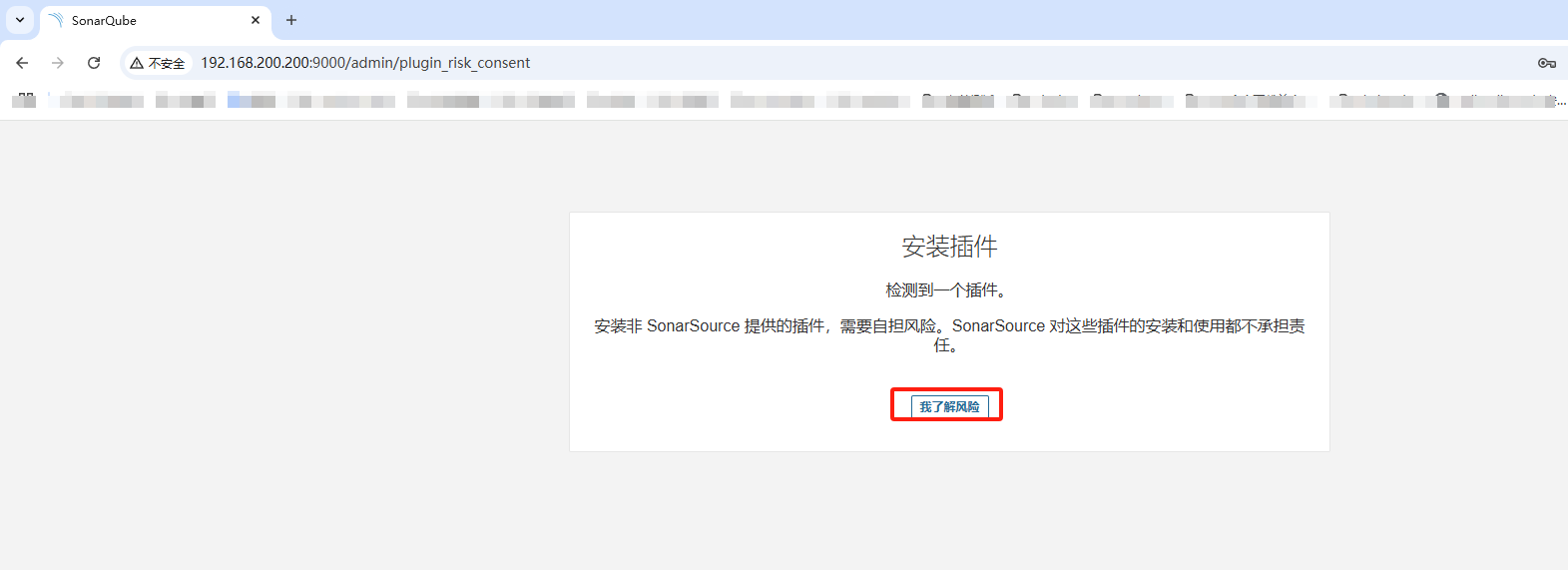

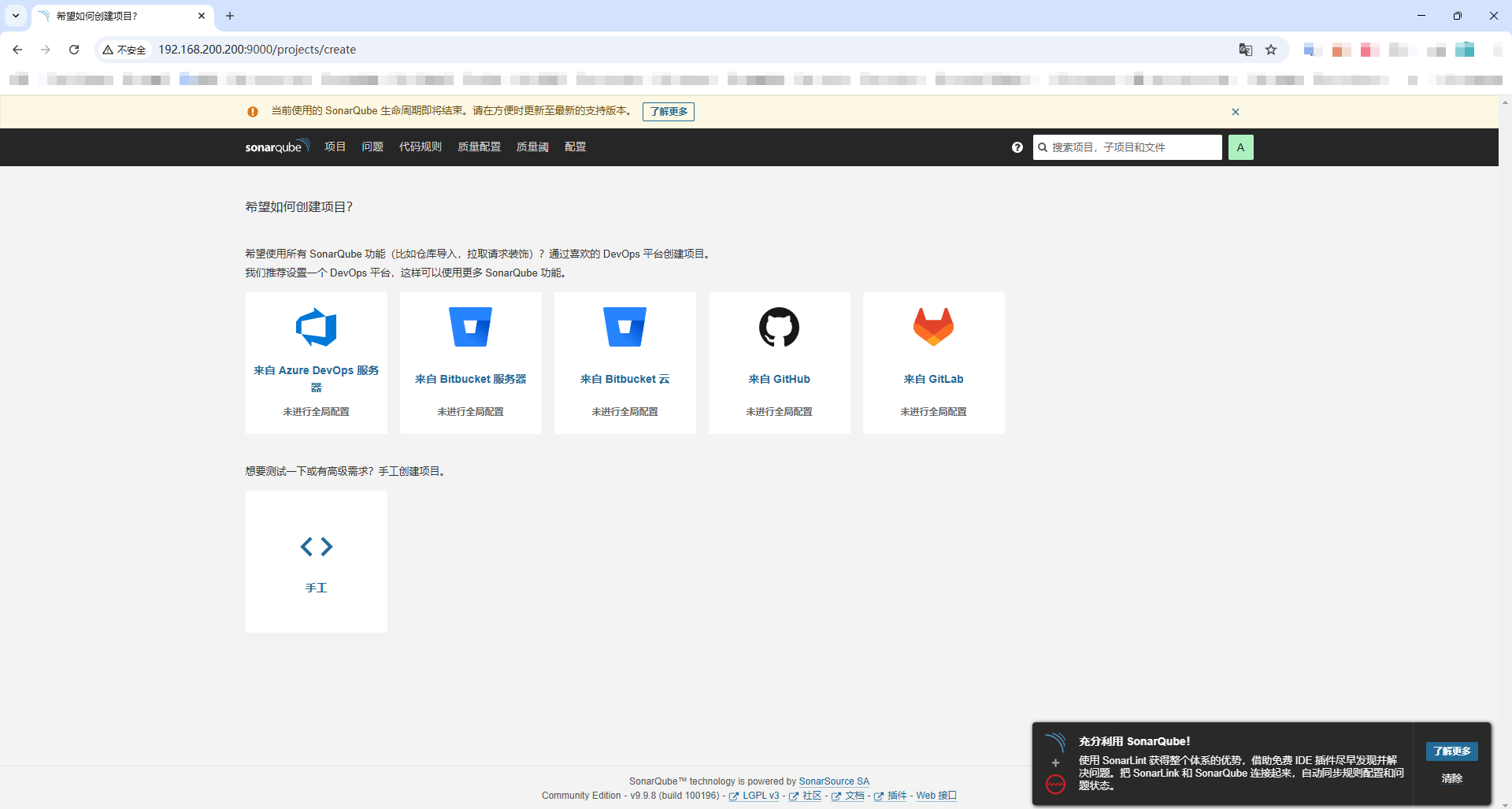

再次访问web页面

三、安装sonar-scanner（4.8.1版本）

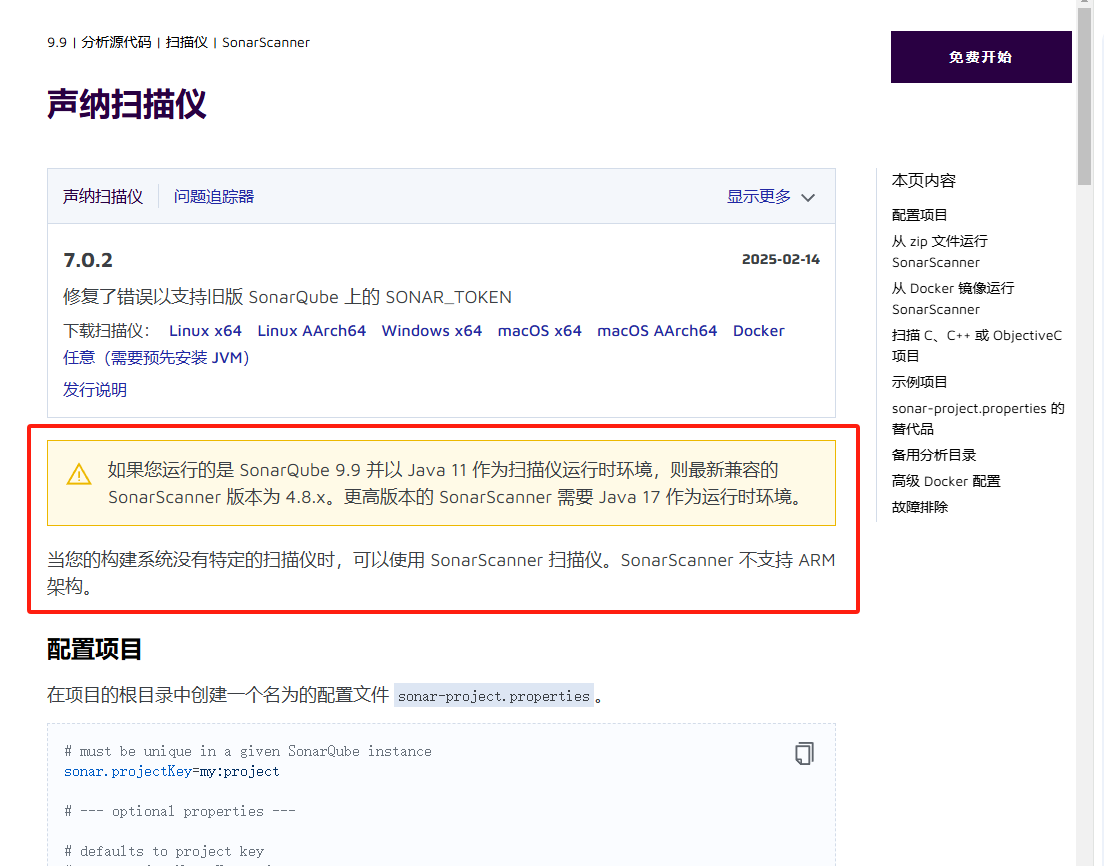

查看scanner官方文档（查看支持版本）

https://docs.sonarsource.com/sonarqube-server/9.9/analyzing-source-code/scanners/sonarscanner/

下载scanner-cli

https://binaries.sonarsource.com/Distribution/sonar-scanner-cli/sonar-scanner-cli-4.8.1.3023-linux.zip

[root@sonarqube ~]# wget https://binaries.sonarsource.com/Distribution/sonar-scanner-cli/sonar-scanner-cli-4.8.1.3023-linux.zip
#解压
[root@sonarqube ~]# unzip sonar-scanner-cli-4.8.1.3023-linux.zip
#移动重命名
[root@sonarqube ~]# mv sonar-scanner-4.8.1.3023-linux /usr/local/sonar-scanner

修改配置

[root@sonarqube ~]# vi /usr/local/sonar-scanner/conf/sonar-scanner.properties
#----- Default SonarQube server
sonar.host.url=http://localhost:9000

#----- Default source code encoding
sonar.sourceEncoding=UTF-8

配置环境变量

[root@sonarqube ~]# vi /etc/profile
export SONARRUNNER_HOME=/usr/local/sonar-scanner
export PATH=$SONARRUNNER_HOME/bin:$PATH
#加载配置
[root@sonarqube ~]# source /etc/profile

查看版本

[root@sonarqube ~]# sonar-scanner -v
INFO: Scanner configuration file: /usr/local/sonar-scanner/conf/sonar-scanner.properties
INFO: Project root configuration file: NONE
INFO: SonarScanner 4.8.1.3023
INFO: Java 11.0.17 Eclipse Adoptium (64-bit)
INFO: Linux 3.10.0-1160.el7.x86_64 amd64

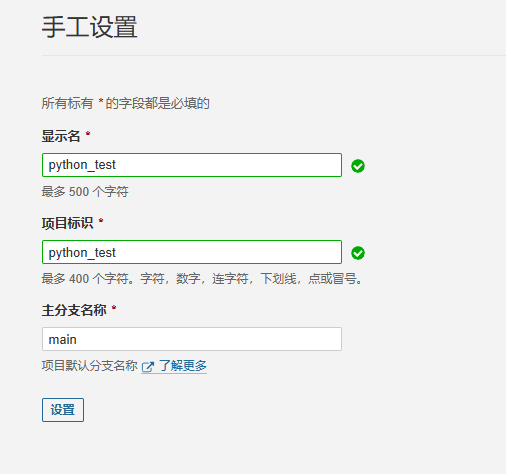

四、sonar-scanner检测python代码（指定projectkey）

部署flask程序

[root@sonarqube ~]# yum -y install python3
[root@sonarqube ~]# yum install -y python3-pip
[root@sonarqube ~]# mkdir python_project
[root@sonarqube ~]# cd python_project/
[root@sonarqube python_project]# vi app.py
from flask import Flask

app = Flask(__name__)
@app.route('/')
def hello_world():  # put application's code here
    return 'Hello World!'

if __name__ == '__main__':
    app.run(host='0.0.0.0')

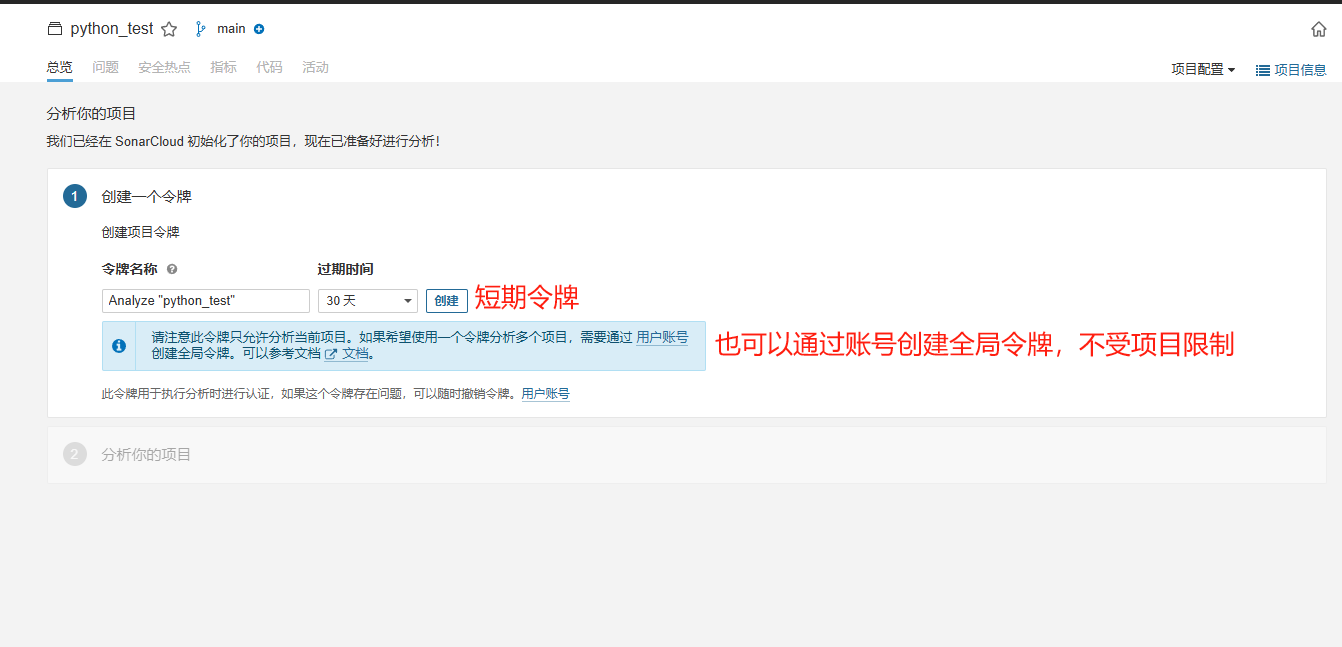

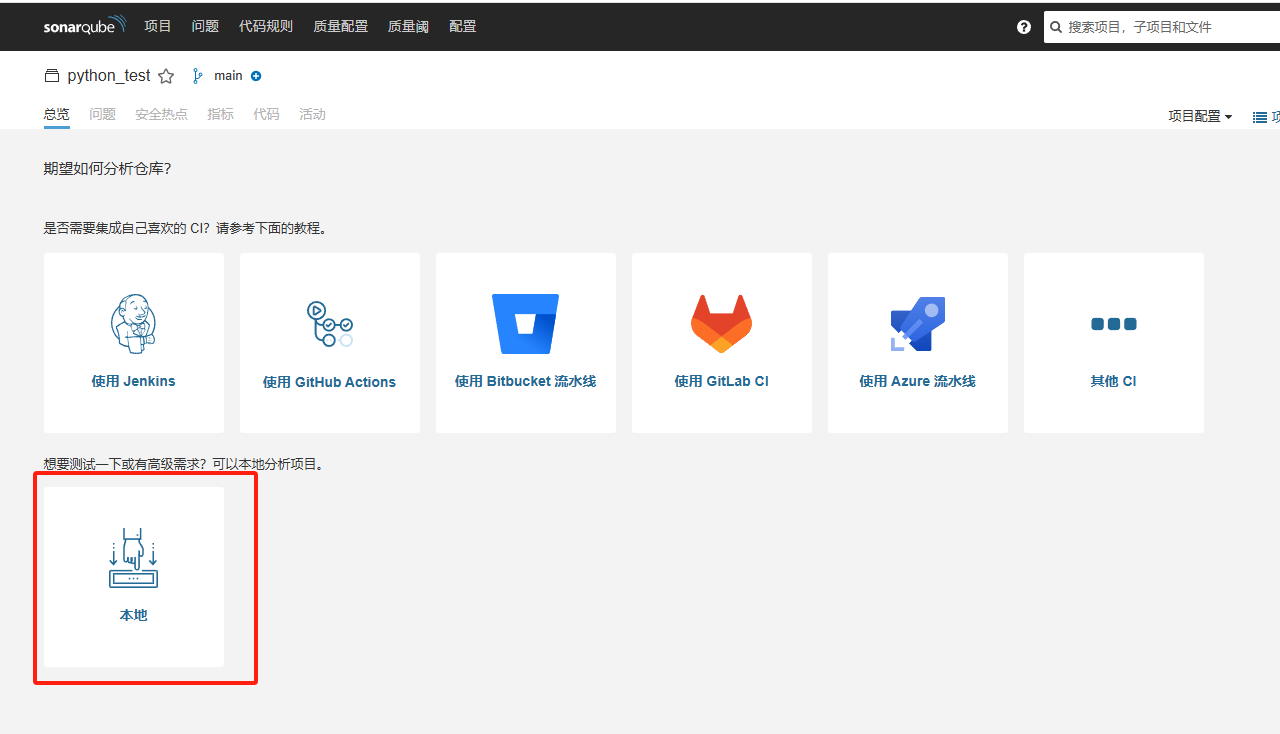

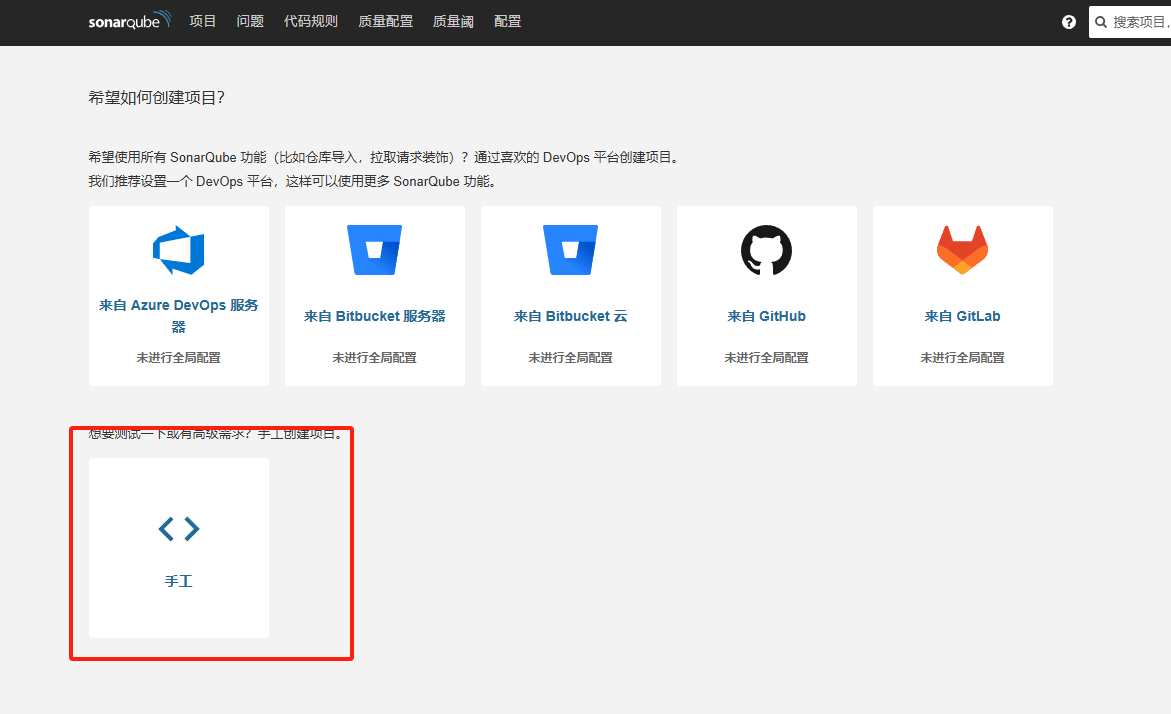

sonarqube创建项目令牌

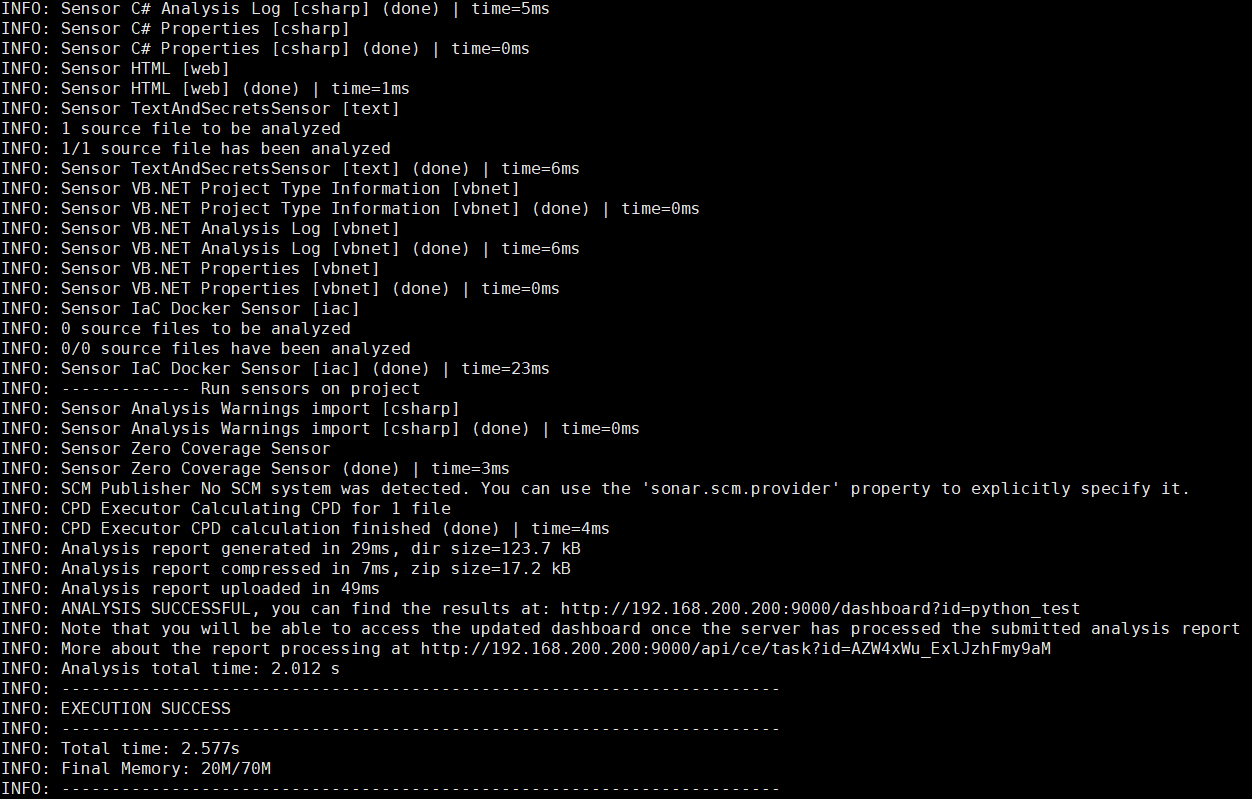

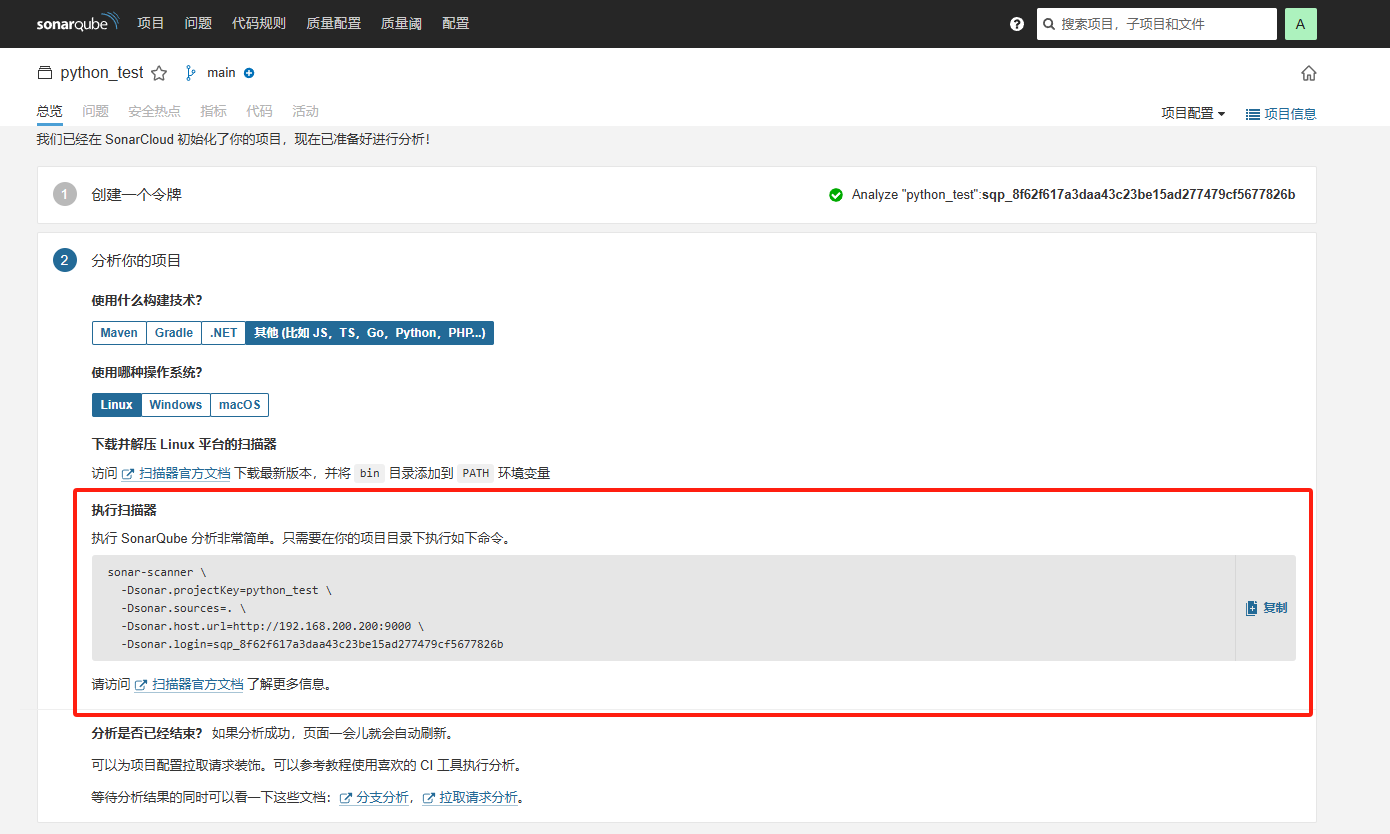

sonar-scanner执行命令代码检测

进入到项目对应目录中

[root@sonarqube ~]# cd /root/python_project/

[root@sonarqube python_project]# ls
app.py

[root@sonarqube python_project]# sonar-scanner \
>   -Dsonar.projectKey=python_test \
>   -Dsonar.sources=. \
>   -Dsonar.host.url=http://192.168.200.200:9000 \
>   -Dsonar.login=sqp_8f62f617a3daa43c23be15ad277479cf5677826b

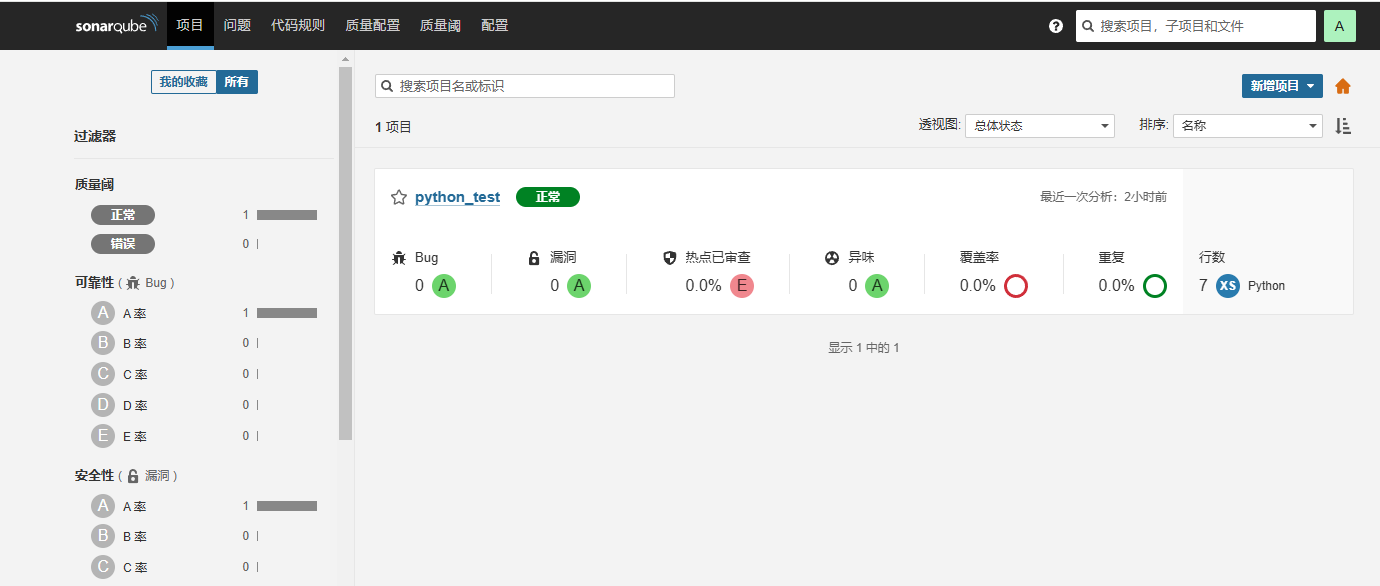

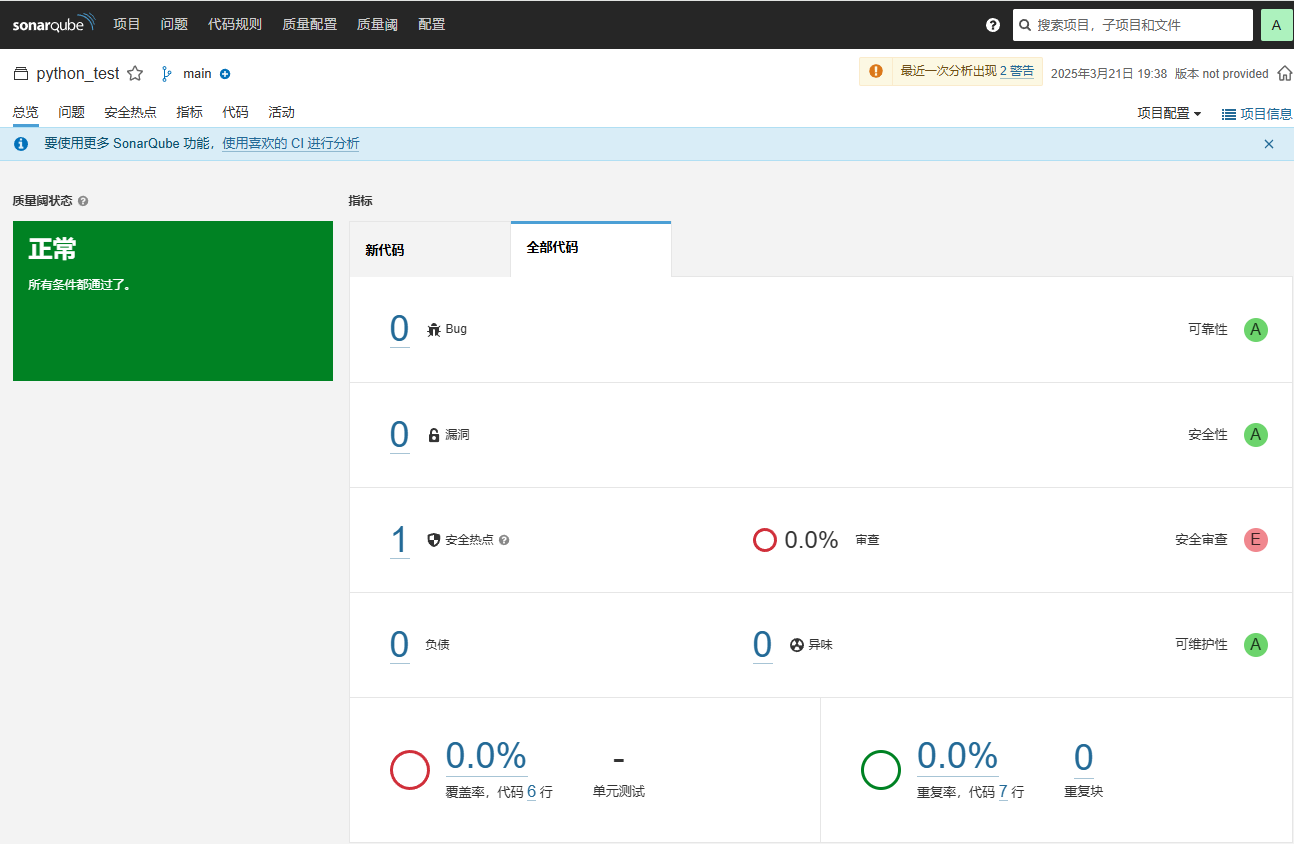

返回sonarqube查看代码检测结果

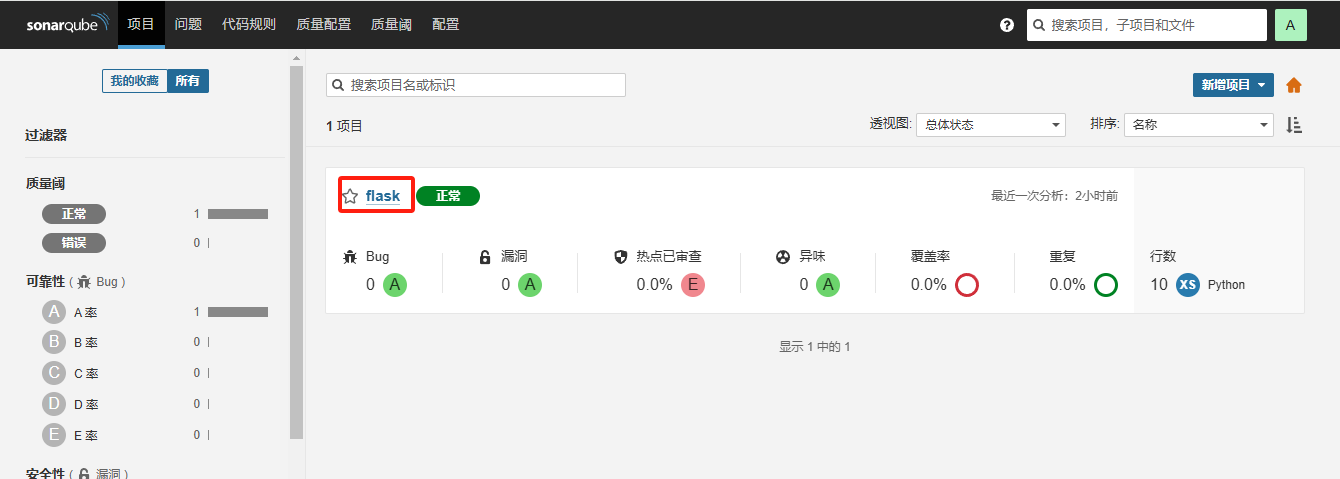

如何自定义projectName项目名字

sonar-scanner客户端执行的时候需要输入projectKey，如果没有项目名字默认就会用项目key替代名字，在客户端检测的时候可以使用sonar.projectName=项目变量名

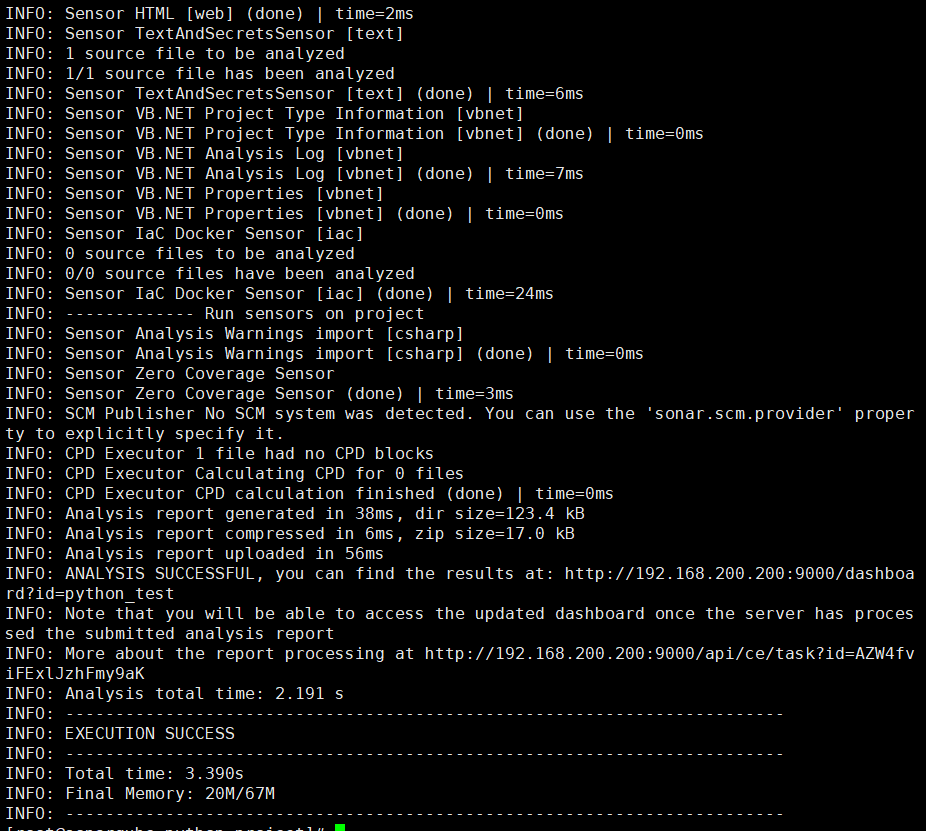

[root@sonarqube python_project]# sonar-scanner -Dsonar.projectName=flask  -Dsonar.projectKey=python_test   -Dsonar.sources=.   -Dsonar.host.url=http://192.168.200.200:9000   -Dsonar.login=sqp_8f62f617a3daa43c23be15ad277479cf5677826b

sonarqube9.9LTA代码检测工具安装使用
